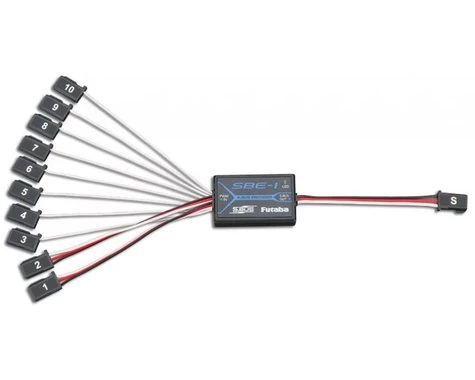

Futaba SBE-1 S.Bus PWM Adapter

This is the Futaba SBE-1 S.Bus PWM Adapter. With the Futaba SBE-1 S.Bus PWM Adapter, almost any receiver becomes instantly compatible with S.Bus programmable servos, as well as the CGY750 3-axis gyro and other S.Bus compatible equipment. The SBE-1 S.Bus PWM Adapter converts input from up to 10 PWM channels into a single S.Bus output.

Specifications:
PWM Input: Max 10 Channels
Input Pulse Width: 805 – 2,235?S
Input Frame Rate: 3 – 27.3mS
Output Signal: S.Bus
S.Bus Data Rate: 100kbps
Output Frame Rate: Approx. 7mS
Operating Voltage Range (Rated): 4.8 – 7.4V
Dimensions: 23.5×33.5×9.5mm (excluding cable)
Weight: 15g
Operating Temperature Range: -10 – +45°C
Storage Temperature Range: -20 – +60°C

This product was added to our catalog on September 9, 2011
