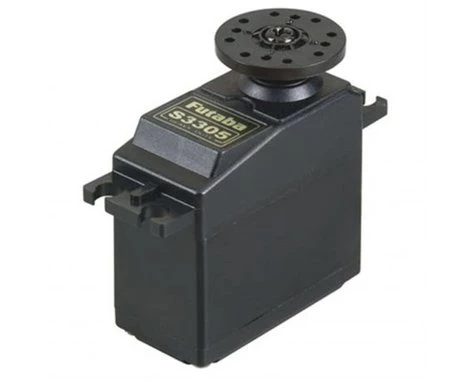

Futaba S3305 High Torque Servo w/Metal Gears

This is the Futaba S3305 High Torque, Metal Gear Servo. Per Futaba this servo is approved for use with NiCd batteries ONLY!

This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.

Features: Wide usage in cars and boats that require standard size, high torque servos Two ball bearings 3-pole motor Standard Futaba J style connector Metal gears One year warranty

Includes: One Futaba S3305 High Torque Metal Gear Servo with 1.5″ (39mm) diameter horn, 1.2″ (32mm) 6 point horn, 4 eyelets, 4 rubber grommets, and 4 mounting screws

Specifications

• Length: 1.6″ (40mm) not including mounting flanges Length: 1.9″ (49.5mm) at center of mounting flanges Width: 0.8″ (20mm) total Width: 0.39″ (10mm) at center of mounting flanges Height: 1.5″ (38mm) not including servo horn
• Weight: 1.64oz (46.5g)
• Speed: 0.25 sec/60° @ 4.8V 0.20 sec/60° @ 6V
• Torque: 124 oz-in (8.9 kg-cm) at 6V 99 oz-in (7.1 kg-cm) at 4.8V

This product was added to our catalog on August 28, 2008
