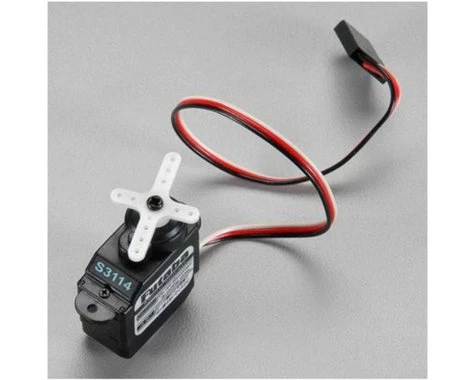

Futaba S3114 Micro High Torque Servo

This is the Futaba S3114 Micro High Torque Servo. This servo is ideal for electric planes and small electric helis.

Specifications:
Torque: 23.5 oz-in @ 6V (1.7 kg-cm)/20.8 oz-in @ 4.8V (1.5 kg-cm)
Speed: .09 sec/60° @ 6V /.10 sec/60° @ 4.8V
Dimensions: .86 x .43 x .78″ (21.8 x 11 x 19.8mm)
Weight: .27oz (7.8g)
Lead Length:  6.5″ (165mm)
Output Spline Diameter: 4mm

This product was added to our catalog on October 24, 2008
