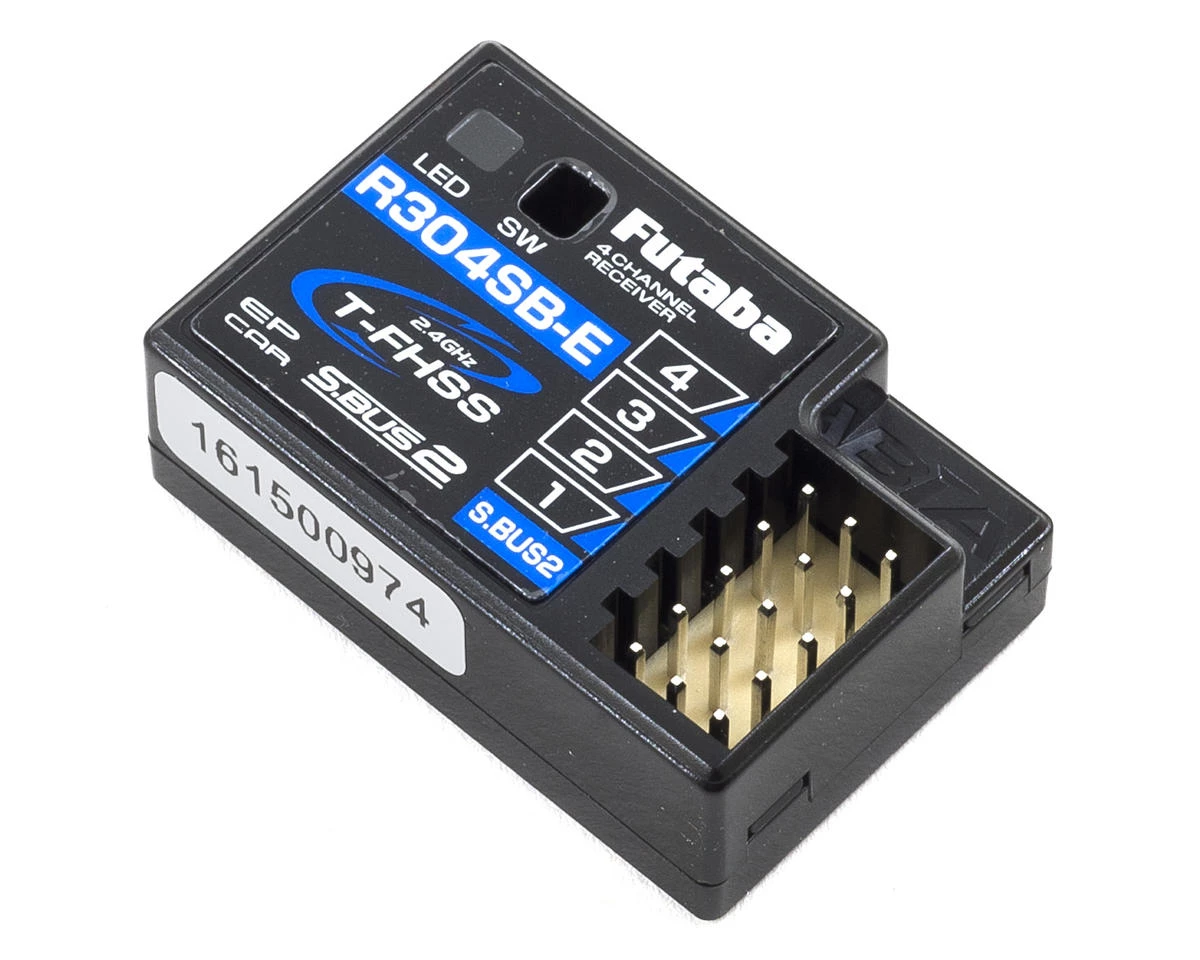

Futaba R304SB-E T-FHSS 4-Channel Telemetry 2.4GHz Receiver (EP Only)

The Futaba R304SB-E T-FHSS 4-Channel Telemetry 2.4GHz Receiver is only compatible with Futaba T-FHSS telemetry compatible transmitters. The R304SB-E is very similar to the R304SB (FUTL7680) in that they both feature 4-channels, both feature S.Bus2, both are Telemetry enabled and both cost roughly the same price.

However, the two receivers differ in two fundamental areas: this R304SB-E is only intended for electric vehicles and features the benefit of having a non-exposed built-in antenna. The R304SB is compatible with electric/nitro/gas applications and the antenna is fully exposed.

NOTE:

• The R304SB-E receiver is recommended for electric powered models only. This is NOT recommended for use with nitro or gas powered models.
• Not compatible with the Futaba FHSS, S-FHSS, FASSTest or FASST transmitters.

Features:

• T-FHSS System
• Telemetry Enabled
• 4-Channels
• Built-in Hidden Antenna
• Electric Vehicle Use Only

Specifications:
Futaba System: T-FHSS
S.Bus2: Yes
Channels: 4
Range: 70m (230ft) (at best conditions)
Power Requirement Rated Voltage: 4.8-7.4V
Usable Voltage: 3.5-8.4V
Size: 1.38×0.91×0.33″ (35.1×23.2×12.5mm)
Weight: 0.23oz (6.7g)
Number of Ports: 5
PWM Output: 4
SBUS Ports: 0
SBUS2 Ports: 1
FASST: No
Telemetry: Yes (T-FHSS)
S-FHSS: No
High Speed: Yes
High Voltage: Yes
Connector: J (STND)
Range: Only for Electric Powered Car Models

NOTE:

• The R304SB-E receiver is recommended for electric powered models only. This is NOT compatible with nitro or gas powered models.
• Not compatible with the Futaba S-FHSS, FHSS, FASSTest or FASST transmitters.

This product was added to our catalog on May 4, 2016
