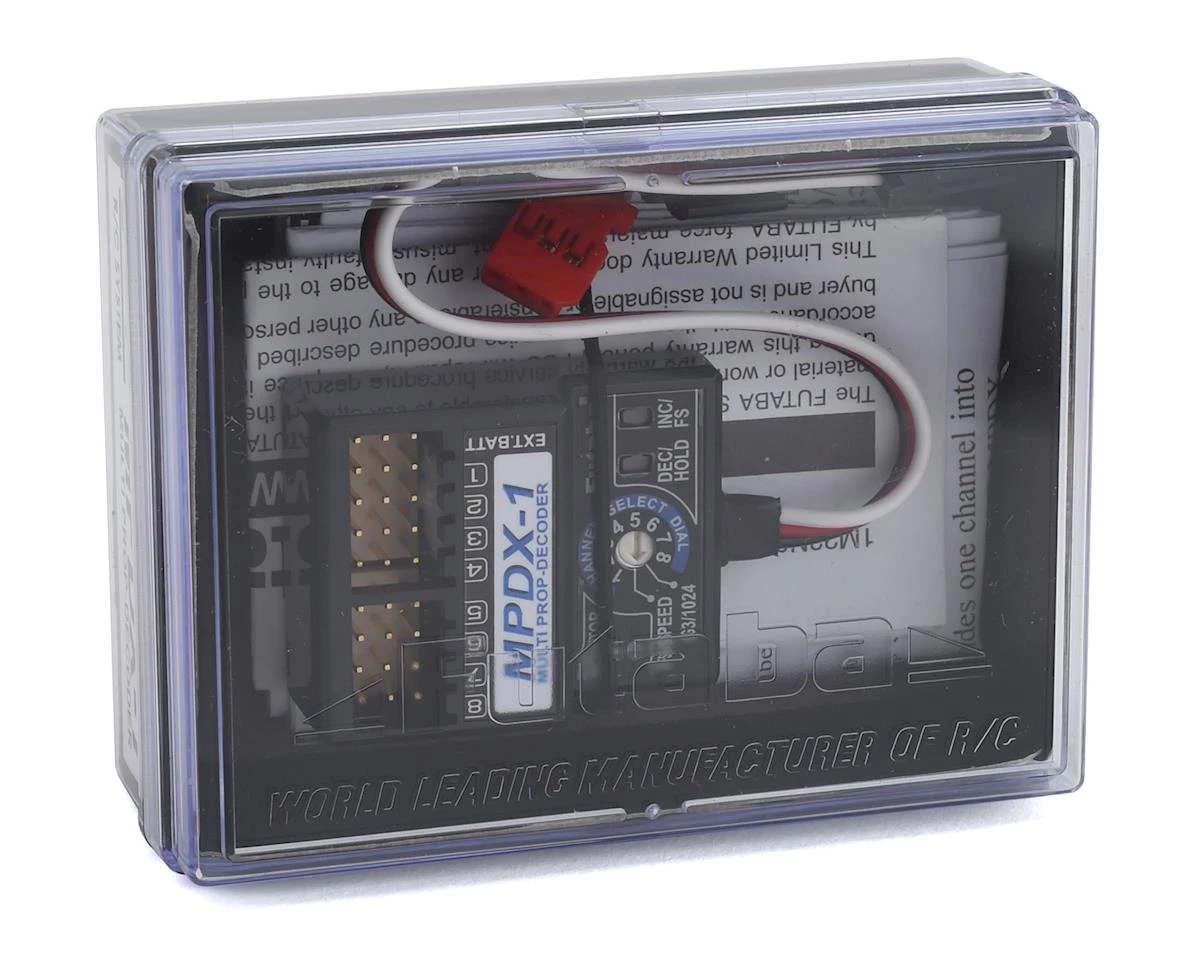

Futaba MPDX-1 Multi-Prop Decoder (FCA) - Image 2

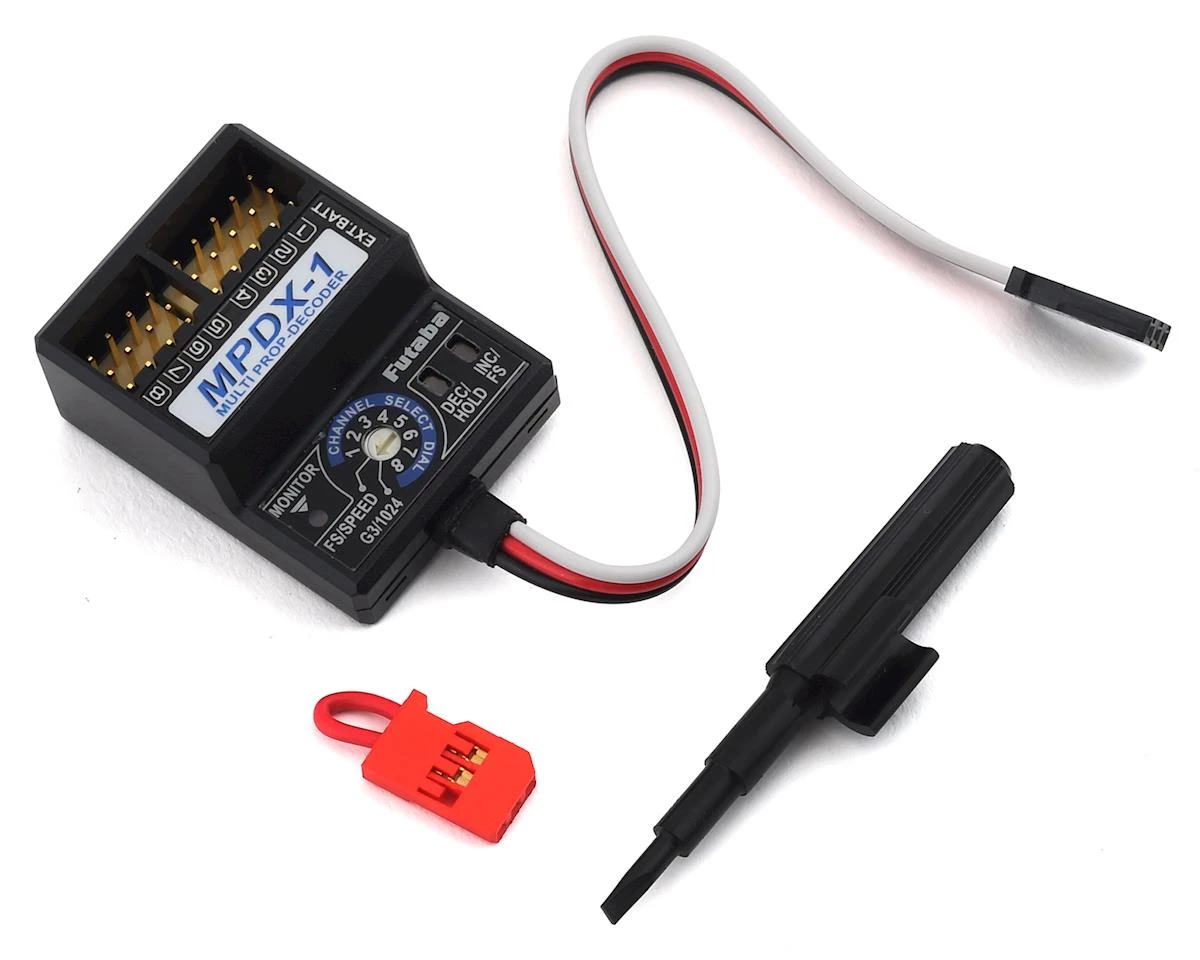

Futaba MPDX-1 Multi-Prop Decoder (FCA)

Original price was: $79.99.Current price is: $47.99.

SKU: 1161392 Categories: Electronics, Helicopters, Receivers Tag: Futaba

Experience the difference quality makes.
Shop with Zero Worries
Secure Payments, Secure Shopping
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

The Futaba MPDX-1 Multi-Prop Decoder is used to expand a single receiver channel signal, to up to eight channels. Simply connect the decoder to the receiver on Futaba 32MZ, 18MZ, 14MZ, FX-40, 12Z and 12FG systems.

Multi-prop channels have the following differences from normal linear channels:

The resolution of the multi-prop channel is lower than that of the linear channel.
Operating multiple multi-prop channels simultaneously may reduce the operation response of the multi-prop channel.
Multi-prop channels can not use the mixing function.

Features:

Servo operation of 8 channels is possible from one single channel
Linear operation is possible
The servo operation speed of each channel can be set
Fail safe setting of each channel is possible
Operation control setting, direction of operation change, and travel adjustment are possible for each multi-prop expanded channel (Transmitter side setting)
32MZ Multi-prop function is a function that divides one channel into eight channels and extends the number of channels. Up to two MPDX-1 can be used, and up to 32 channels can be expanded as follows:
