Futaba 7PXR 7-Channel 2.4GHz T-FHSS Telemetry Radio System w/R334SBS Receiver

The Futaba 7PXR 2.4GHz 7-Channel T-FHSS radio system is the redesigned apex radio for Futaba and features a number of upgrades over the original 7PX. The 7PXR was designed to be lightweight and easy to use with a significantly improved menu system. This 7-Channel telemetry capable T-FHSS radio system delivers features you won’t find in another radio systems. The innovations start with the T-FHSS SR Super Response protocol, and continue with full telemetry capability, a back-lit 4.3″ LCD touch screen and a updated R334SBS Receiver.

• T-FHSS Super Response transmission system (Frame Rate of 2.45 msec)
• Compatible with T-FHSS, S-FHSS and FASST systems
• 4.3″ color LCD touch screen display
• Telemetry capable
• 40 memory slots to save the configurations of your models
• 5 mix programs
• S.Bus servo programming system
• 7 channels with epa adjustment, sub-trim, brake mixing and ABS
• 4WS mixing
• Brake mixing
• Gyro mixing
• Steering mixing
• Memory with lap times
• Adjustable steering wheel and gas trigger
• Micro SD card slot
• Voice messages
• Headphone jack
• Suitable for left-handed people

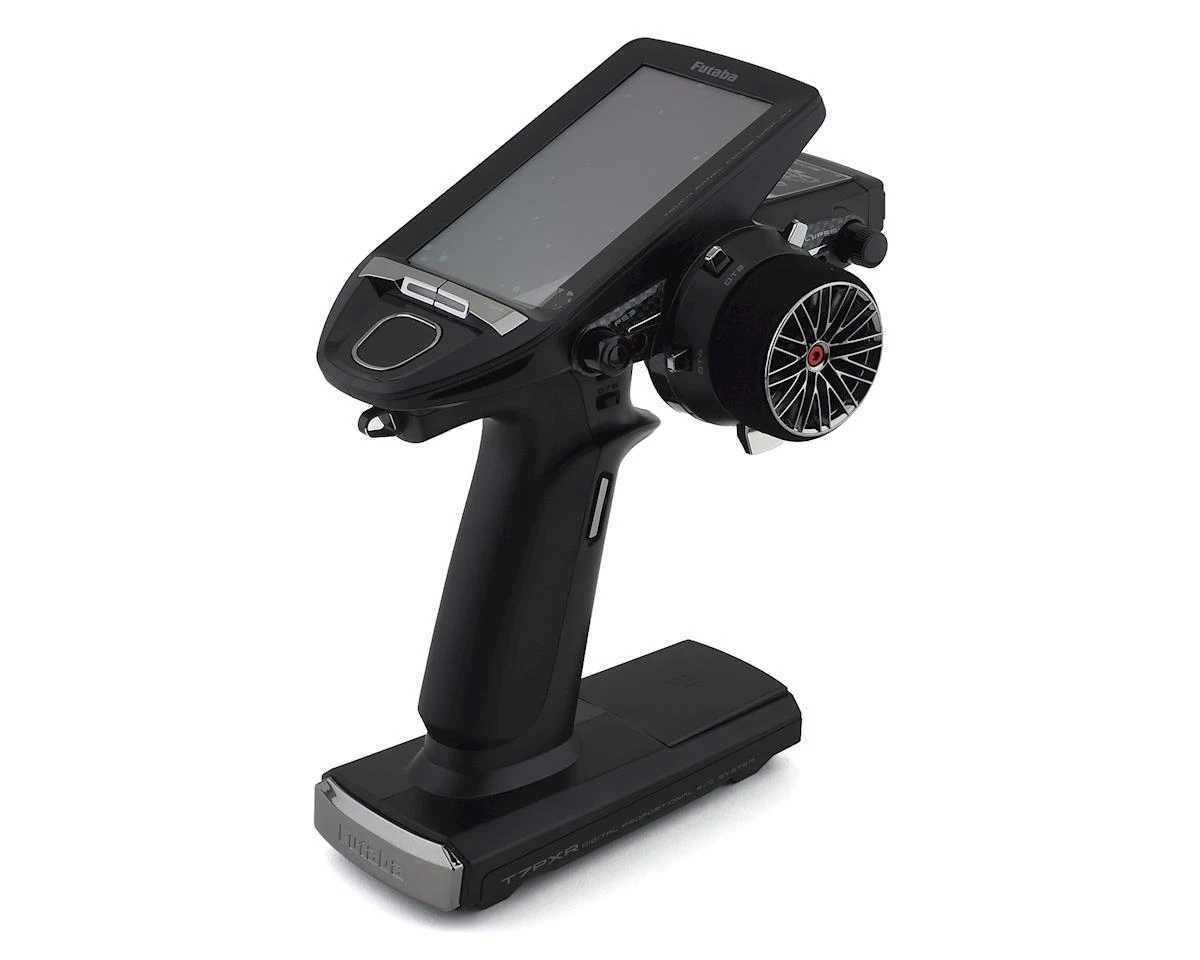

• Transmitter:
• Transmitting Frequencies: 2.4 GHz band/ -Transmitting RF power output: 100 mW EIRP
• Protocols: T-FHSS SR/T-FHSS/S-FHSS/FASST-C2
• Power Requirement: Ni-MH – NT5F1800B (6 V)/LiFe – FT2F1700BV2 (6.6 V)
• Current Drain: 350 mA or less (When the T-FHSS, Vibration off, back lighting on)
• Transmitting Antenna: 1/2 dipole
• Display: 4.3 Inch Backlighted Color TFT Liquid Crystal Touch Panel (NOTE: When you turn on your 7PXR, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.)

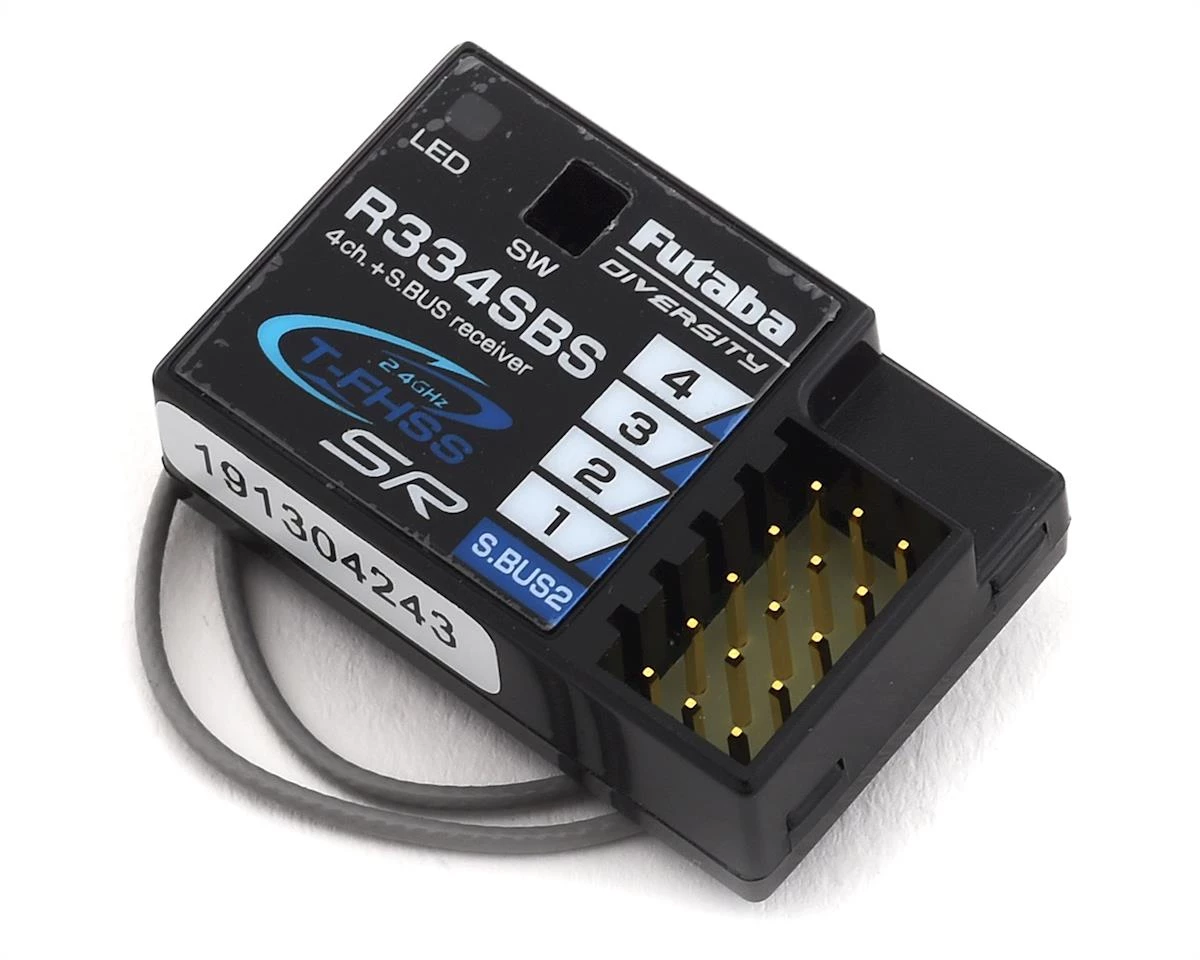

• Receiver:
• Size: 33.9×22.3×11.3mm (1.33×0.88×0.44″)
• Weight: 7.5 g (0.26 oz)
• Operating Volatge: DC 3.7V-7.4V

• T7PXR Transmitter
• R334SBS Receiver
• Dry Battery Holder
• Wheel Offset Adapter
• Wheel Adapter 32deg
• Large Diameter Steering Wheel (54mm)
• Trigger Brake Lever (Narrow Type)
• Miniature Screwdriver
• Screen Protector
• (3) Receiver Plugs
