Futaba 14SG 2.4GHz FASSTest Radio System (Heli) w/R7008SB Receiver

This is the Futaba 14SGH 2.4GHz FASSTest Helicopter Radio System, with an included R7008SB Receiver. This is the Mode 2 Helicopter version; the left stick controls throttle and rudder and the right stick controls elevator and ailerons, and will default to heli settings when powered up.

The 14SGH has all the functions a pilot wants, including flybarless gyro support, S.Bus programmability, Telemetry, FASSTest technology and more! The 14SGH is the only 14-channel system with Futaba’s revolutionary 2.4GHz FASSTest technology, and is also compatible with Futaba FASST and S-FHSS protocols, so you can fly with virtually any 2.4GHz air receiver Futaba produces!

Additionally, the 14SGH can transmit and receive telemetry data! Just install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. Heli pilots will prefer the 14SGH’s 3-axis gyro support — which makes the 14SGH the perfect system for flybarless flight! The innovations don’t stop there. Turn the 14SGH over, and you’ll see the construction is as rock-solid as any other Futaba system. It’s also very comfortable to use, thanks to rubber grips that help minimize flyer fatigue — an added bonus that pilots will appreciate.

About the 14SG:

• Channels: 12 proportional, 2 switched
• Compatible with FASSTest, FASST and S-FHSS protocols
• FASSTest telemetry – compatible with Futaba telemetry sensors (sold separately)
• Free user-updatable software
• 30-model memory
• 10-character user naming
• 10-character model naming
• Airplane, helicopter and glider programming
• Large, 1.75” x 3” backlit LCD screen with 128 x 64 resolution
• SensorTouch™ programming
• SD Card compatibility for external model memory and software updates (SD: 32MB-2GB; SDHC 4GB-32GB)
• Left and right assignable slider switches
• Two assignable rotary knobs
• Six assignable three-position switches
• One assignable momentary two-position switch
• One assignable two-position switch
• Comfortable rubber grips on the sides and back
• Wide top switch spacing
• Adjustable stick tension
• Dual ball bearing gimbals
• 4 vibration warning types
• Home/Exit; User Menu/Servo Monitor buttons
• Audio earphone jack (for telemetry alarms)
• 6V 1800mAh NiMH battery pack
• User stick calibration
• Trainer system
• Servo speed adjust
• 5 programmable mixes
• V-tail, Ailvator, winglet, motor mixing
• Trim mix
• Logic switch (condition switch only)
• Internal programmer for S.Bus servos
• User menu
• Servo monitor (neutral and moving tests)
• 2 count up/countdown timers
• Integral timer
• Model timer
• Quick model select

Control Features:

• Airplane:
• 7 different wing types
• 3 different tail types
• 2 different rudder types
• Flap setting menu
• Differential ailerons
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder mixing
• Rudder to aileron mixing
• Rudder to elevator mixing
• Camber mixing
• Elevator to camber mixing
• Camber flap to elevator mixing
• Snap roll mixing
• Airbrake mixing
• V-Tail mixing
• Ailvator
• Winglet
• Motor mixing
• Fuel mixture mixing
• Gyro mixing
• Throttle curve (5-point)
• Pitch curve (5-point)
• Idle down
• Helicopter:
• 6 swash plate types
• Pitch/throttle curves (5-point)
• Throttle hold
• Swash mix
• Throttle mix
• Pitch to rudder mixing
• Fuel mixture
• Gyro (Flybarless support)
• Governor (700-3500 rpm)
• Hover pitch
• Hover throttle
• High/low pitch
• Swash AFR
• Swash setting (mixing rate, linkage compensation, speed compensation)
• Swash ring (electronic)
• Throttle cut
• Glider:
• 11 different wing types
• 3 different tail types
• 2 different rudder types
• Flap setting menu
• Differential ailerons
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder mixing
• Rudder to aileron mixing
• Rudder to elevator mixing
• Camber mixing
• Elevator to camber mixing
• Camber flap to elevator mixing
• Butterfly mixing
• Butterfly to elevator mixing

Specifications:

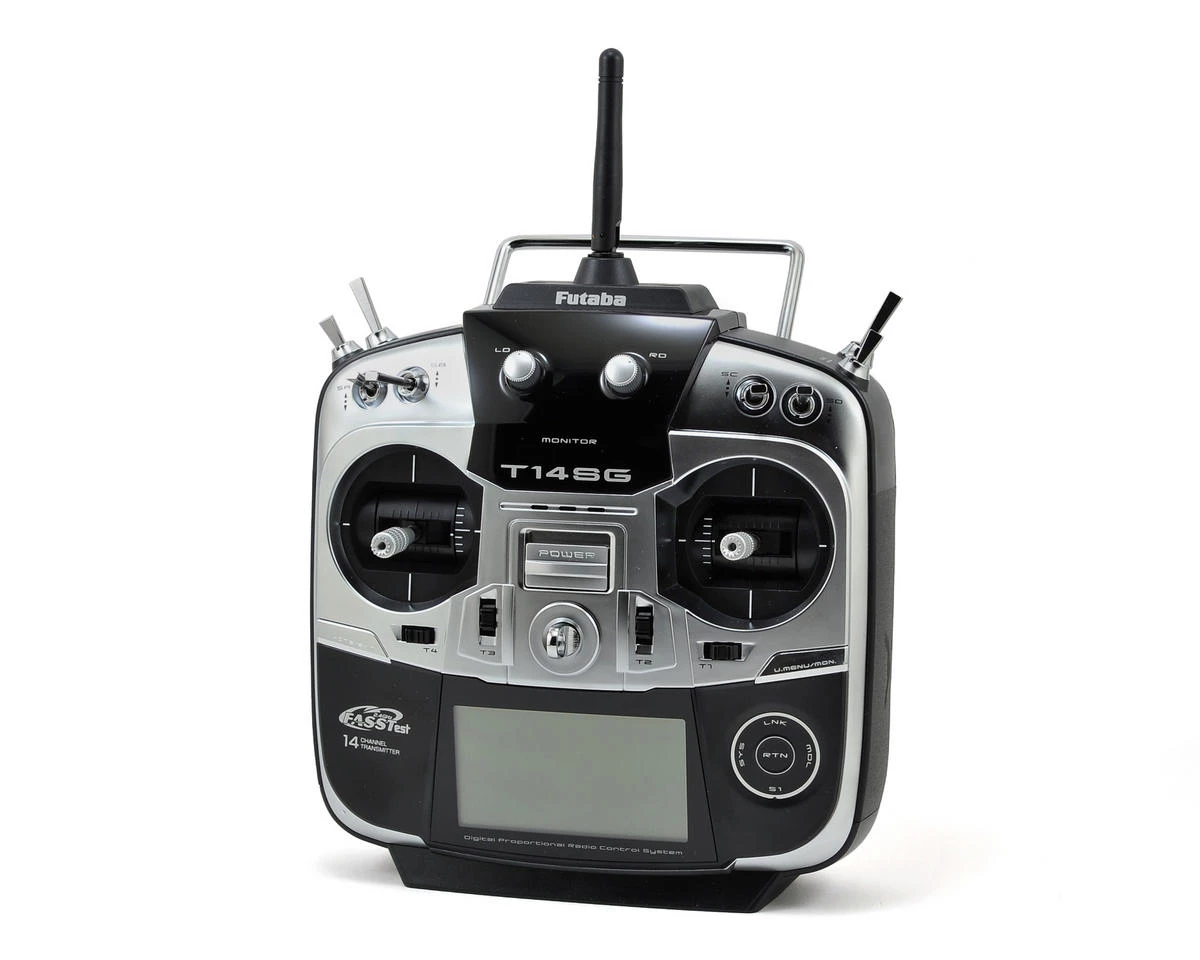

• 14SGH Transmitter:
• Transmitting Frequency: 2.4GHz band
• System: Switchable; FASSTest14CH, FASSTest12CH, FASST MULTI, FASST 7CH, S-FHSS

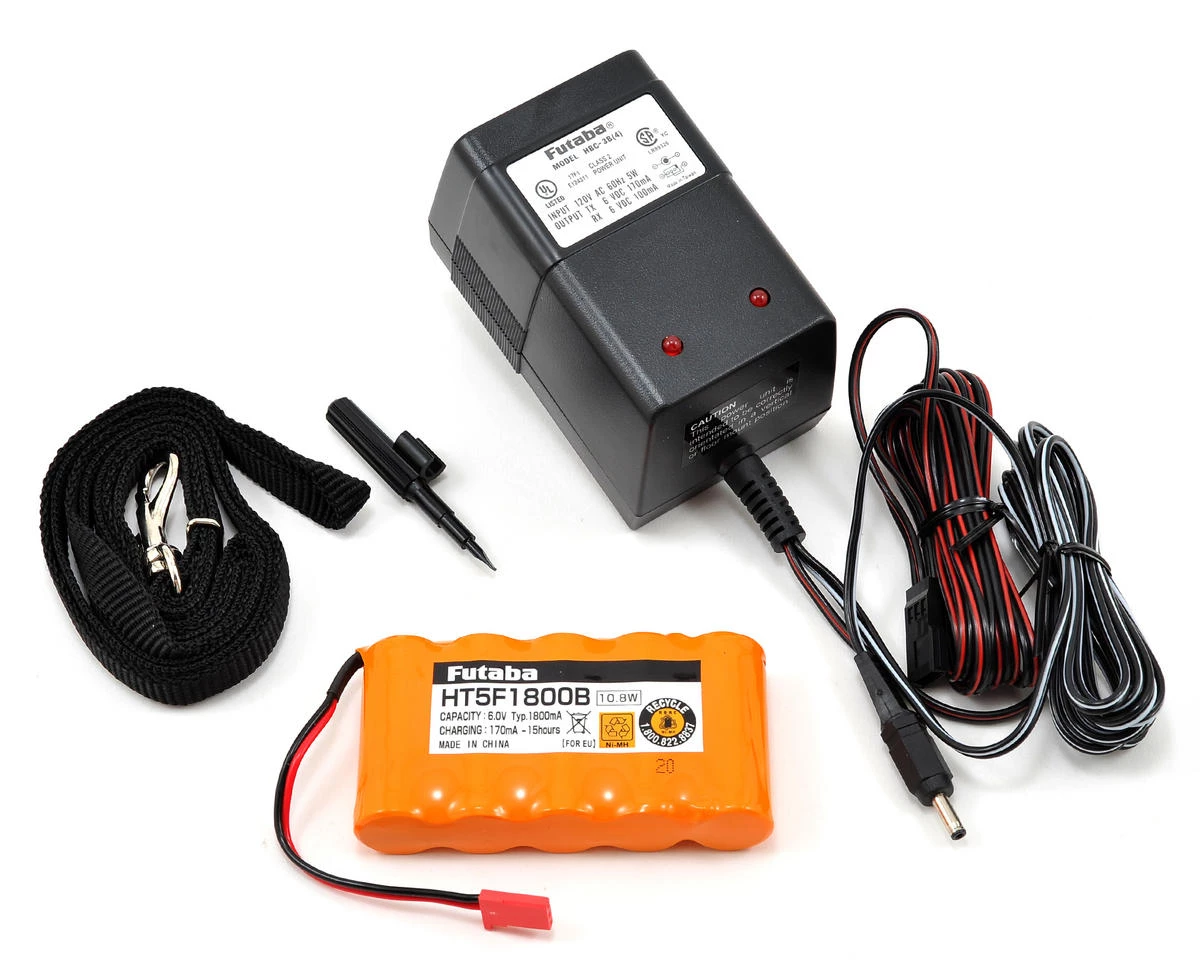

• Power Supply: 6.0V HT5F1800B NiMH battery (FUTM1482)

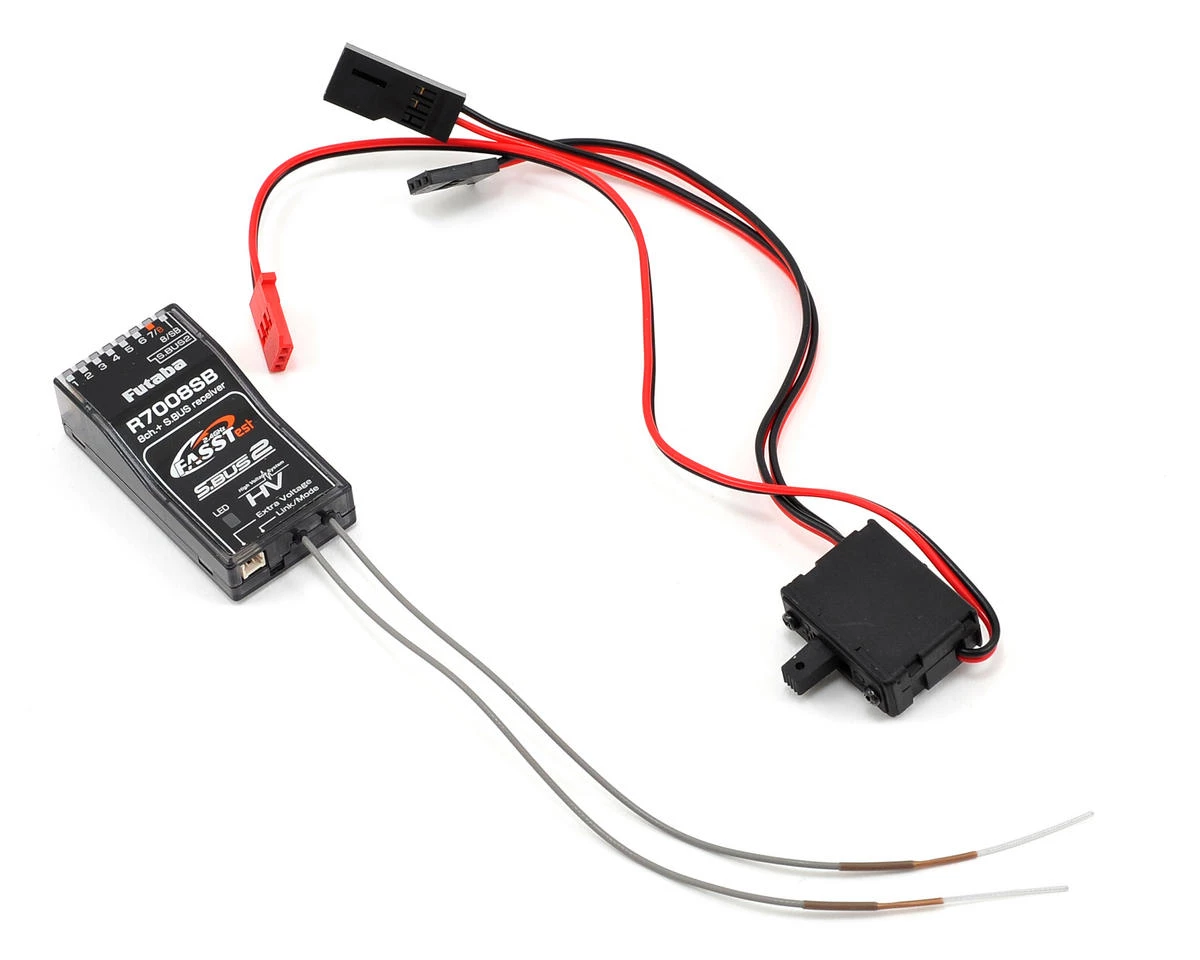

• R7008SB Receiver:
• Receiving Frequency: 2.4GHz FASSTest system
• Power Requirement: 3.7 – 7.4V (voltage range 3.5 – 8.4V)
• Current drain: 75mA
• Extra Voltage Port: 0 – 70V DC
• Size: 0.98×1.9×0.56″ (24.9×47.3×14.3mm)
• Weight: 0.38oz (10.9g)

This product was added to our catalog on March 29, 2013
